UB7N Miniature Circuit Breaker
High-performance protection for residential and commercial applications.
- Standard Compliance
- IEC/EN 60898-1

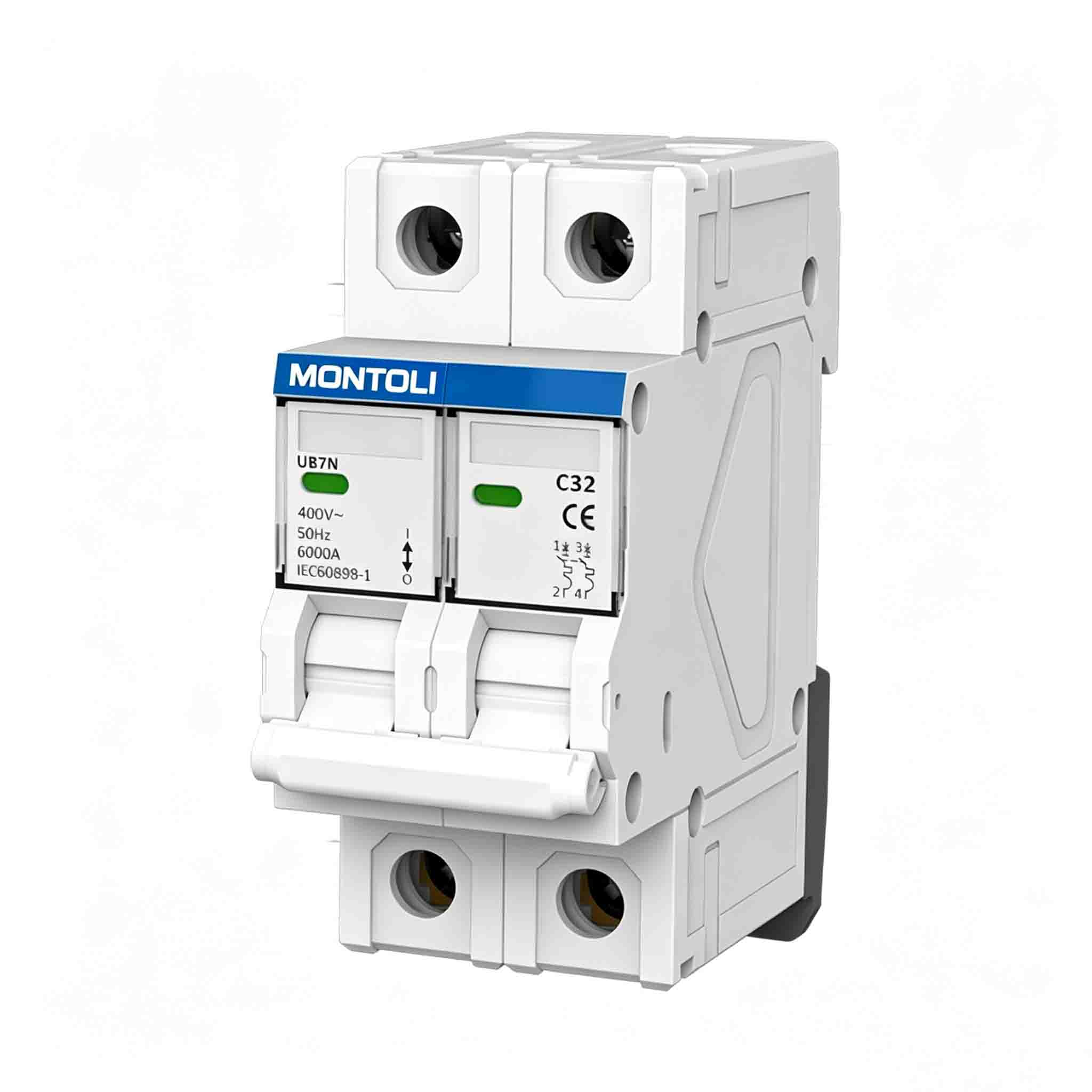

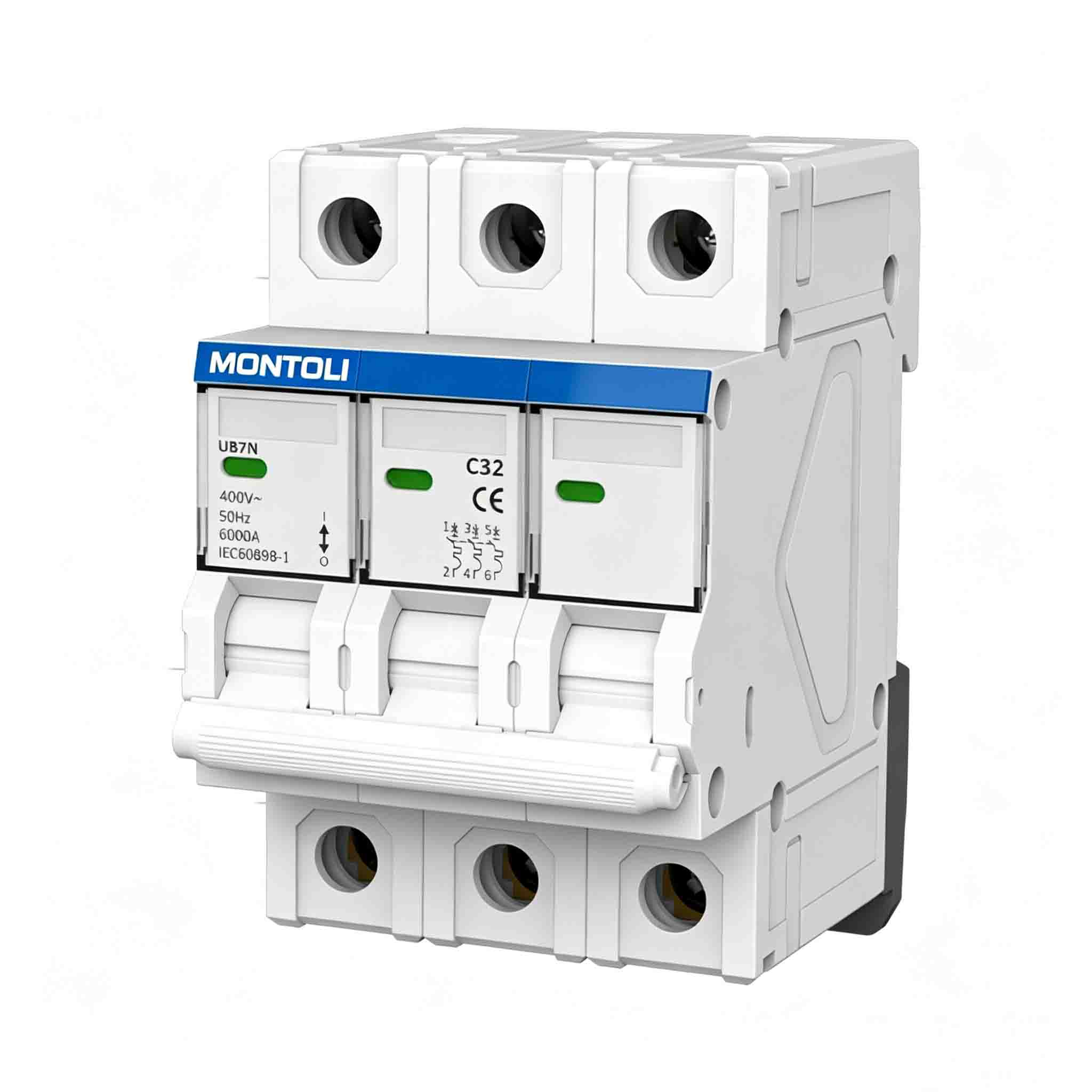

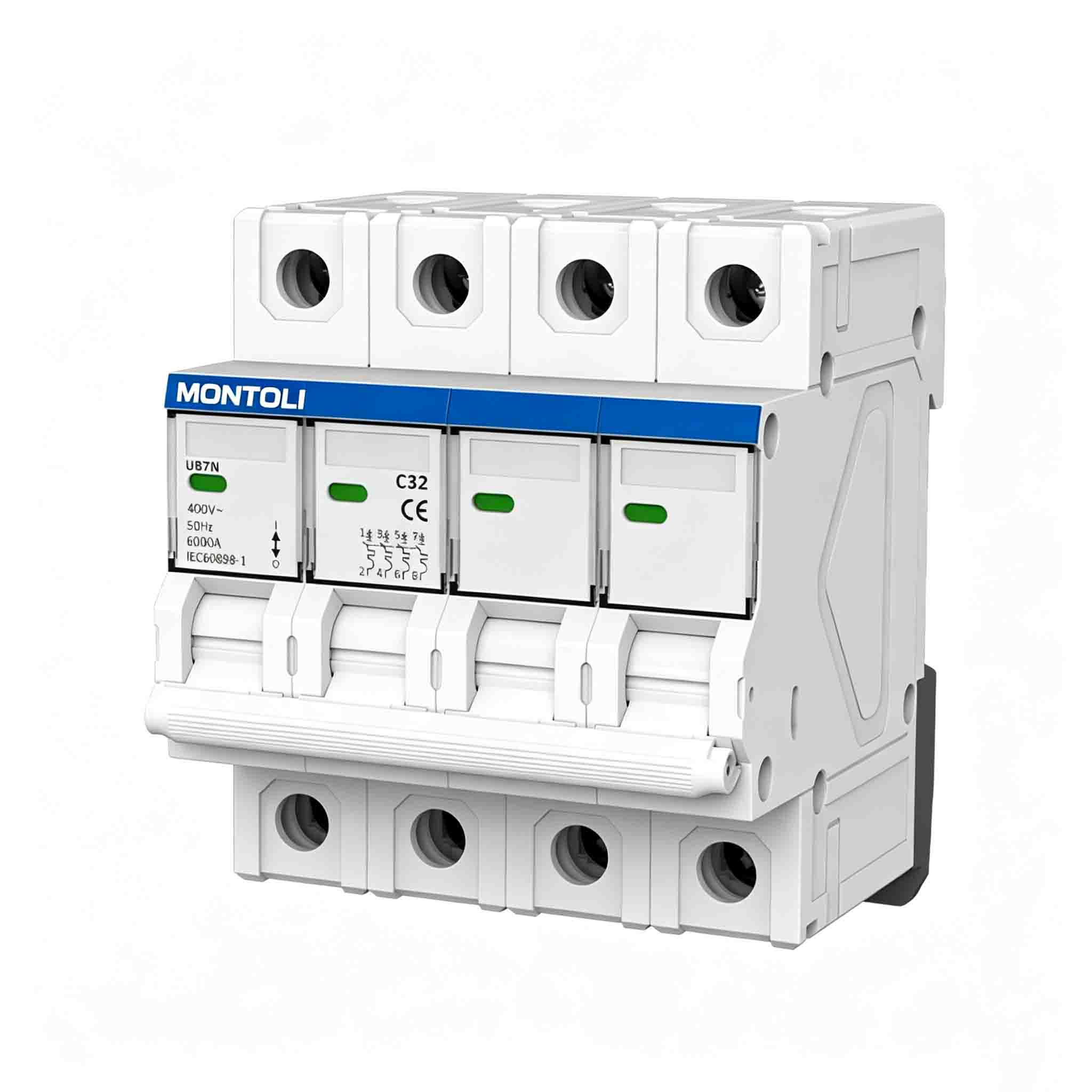

- Poles Configuration
- 1P , 2P ,3P ,4P
- Rated Current
- 1A-63A
- Rated Frequency
- 50/60 Hz
- Short Circuit Capacity
- 6 KA
- Working Voltage
- 1P:230/400V AC
2P/3P/3P:400V AC - Trip Characteristic
- Type B、C, D
- Mechanical Life
- 10,000 operations
- Electrical Life
- 6000 operations
UB7N Miniature Circuit Breaker Specifications
| General Information | |
| Model | UB7N |
|---|---|
| Number of Poles | 1P、2P、3P、4P |
| Electrical Specifications | |
| Rated Current (In) | 1A-63A |
| Rated Working Voltage (Ue) | 1P:230/400V 2P/3P/4P:400V~ |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 KA |
| Dielectric Test Voltage | 2 kV |
| Instantaneous Release Type | B, C, D |
| Residual Current Working Type | B, C, D |
| Residual Current Protection Type | 440 |
| Mechanical Performance & Life | |
| Mechanical Life | 10000 operations |
| Electrical Life | 6000 operations |
| Accessories & Indicators | |
| Shunt Release (SHT) | / |
| Under Voltage Release (UVT) | / |
| Auxiliary Contact (AUX) | / |
| Alarm Contact (ALT) | / |
| Contact Position Indicator | / |
| Fault Indication | / |
| Environment & Installation | |
| Operating Temperature | -5℃ ~ +40℃ (Daily average ≤ 35℃) |
| Storage Temperature | -25℃ ~ +70℃ |
| Degree of Protection (IP Code) | IP40 (Enclosure), IP20 (Terminals) |
| Pollution Degree | 30 |
| Reference Temperature for Thermal Element | 2℃ |
| Connection Wire Cross-section | 1 - 16 mm² |
| Busbar Cross-section | 35 mm² |
| Installation Method | Cable / Busbar |
| Connection Direction | Top or Bottom entry permitted |
