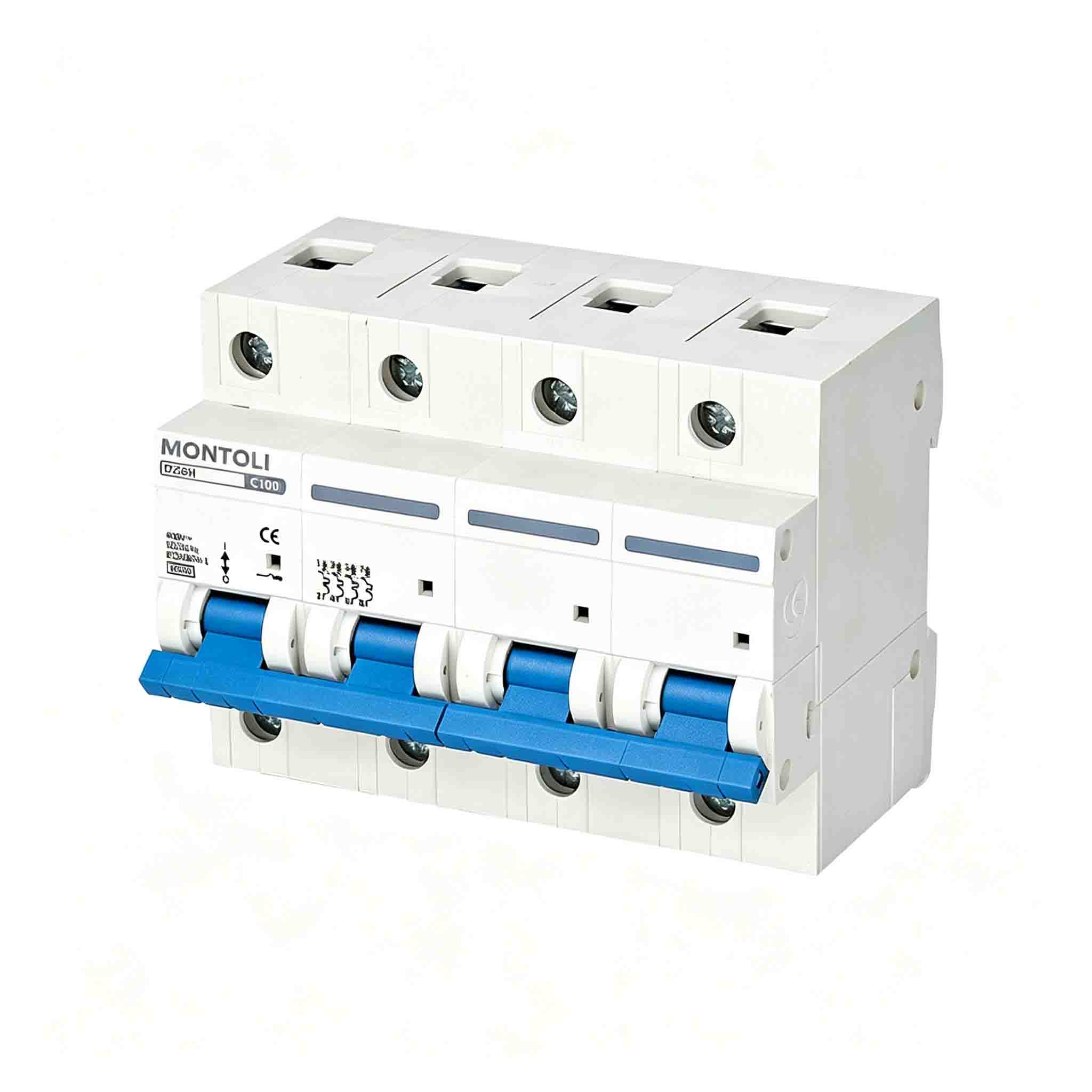

GB6H Circuit Breaker Main View

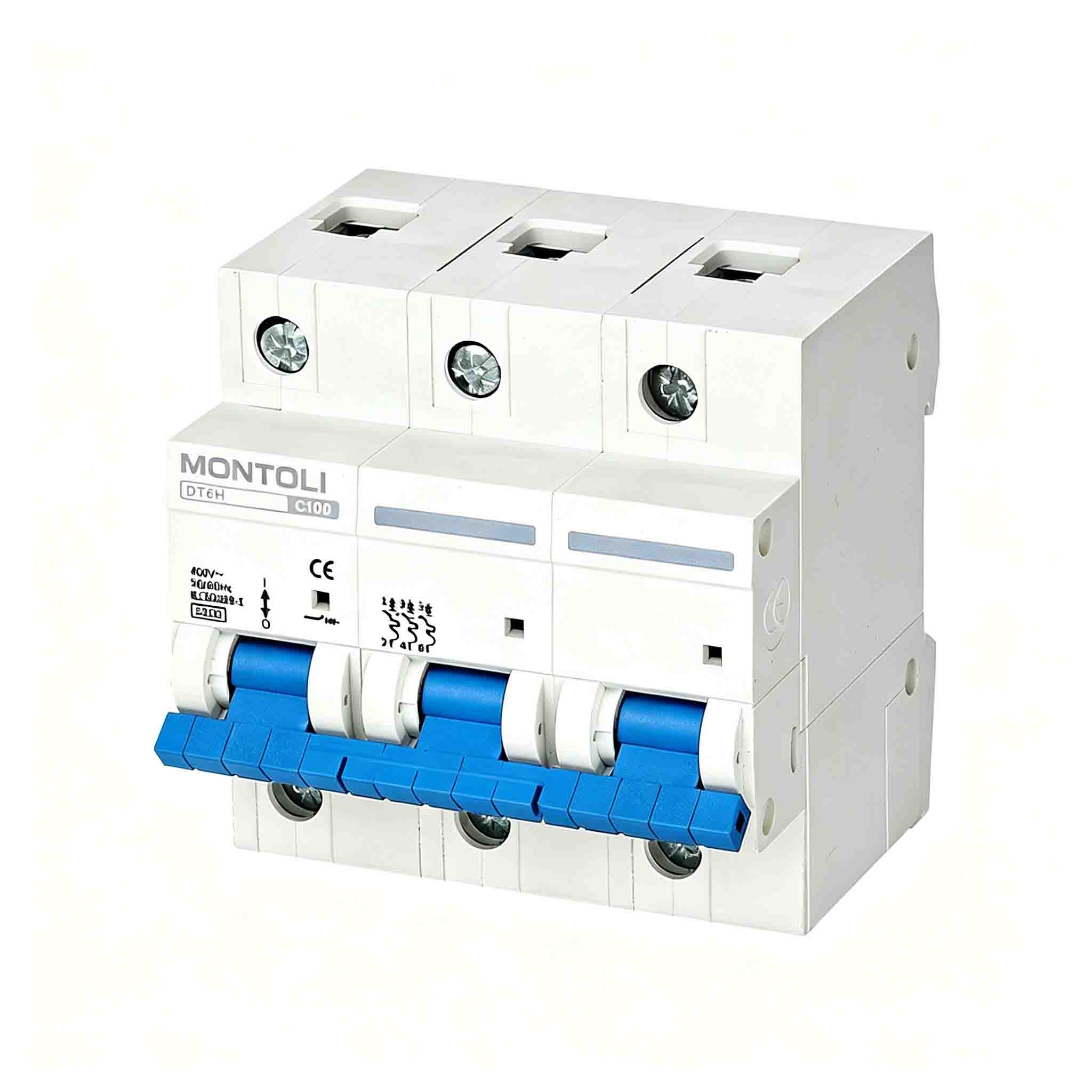

4P View
3P View

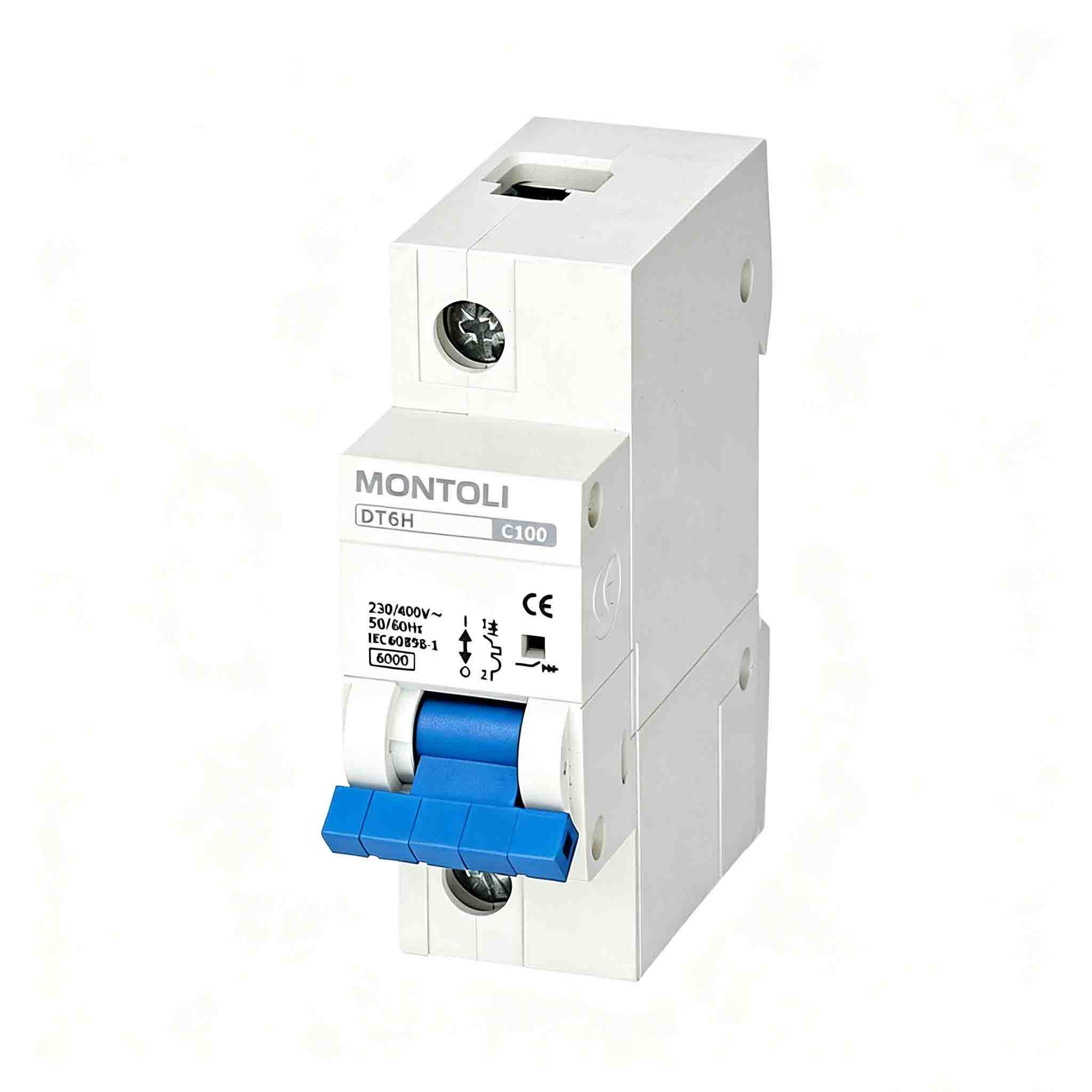

1P View
2P View

TD6H Miniature Circuit Breaker/MCB

High-performance protection for residential and commercial applications.

Standard Compliance
IEC/EN 60898-1
Poles Configuration
1P, 2P, 3P, 4P
Rated Current
63A-125A
Rated Frequency
50/60 Hz
Short Circuit Capacity
6 kA
Working Voltage
1P: 230/400V AC
2/3/4P: 400V AC
Trip Characteristic
Type B, C, D
Mechanical Life
10,000 operations
Electrical Life
4,000 operations
WhatsApp Us Send Message Back to List
DG6H Technical Specifications

TD6H Miniature Circuit Breaker Specifications

General Information
ModelTD6H
Number of Poles1P, 2P, 3P, 4P
Electrical Specifications
Rated Current (In)63 - 125 A
Rated Working Voltage (Ue)1P: 230/400V~
2P/3P/4P: 400V~
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Instantaneous Release Type(8-12)In
Residual Current Operating Type440
Residual Current Protection Type2
Mechanical Performance & Life
Mechanical Life8,500 operations (In=63-100A)
7,000 operations (In=125A)
Electrical Life3,000 operations (In=63-100A)
2,500 operations (In=125A)
Accessories & Indicators
Shunt Release (SHT)/
Under Voltage Release (UVT)/
Auxiliary Contact (AUX)/
Alarm Contact (ALT)/
Contact Position Indicator/
Fault Indication/
Environment & Installation
Operating Temperature-5℃ ~ +40℃ (Daily average ≤ 35℃)
Storage Temperature-25℃ ~ +70℃
Degree of Protection (IP Code)IP40 (Enclosure), IP20 (Terminals)
Pollution Degree3
Reference Temperature for Thermal Element2
Pollution Degree30
Connection Wire Cross-section25 - 50 mm²
Busbar Cross-section/
Installation MethodCable
Connection DirectionTop and Bottom entry permitted
