MTM8 Series Moulded Case Circuit Breaker
Product overview:
MTM8 series moulded case circuit breaker (hereinafter referred to as circuit breaker) is one of the new circuit breakers produced by our company.
The rated insulation voltage is 800V, which is suitable for infrequent switching and motor starting in the AC 50Hz circuit with rated working voltage of 690V and below (400V for MTM8-63) and rated working current of 800A.
The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage.
Note: MTM8-63/100S can be of upper incoming line or lower incoming line.
The limit breaking and flashover distance includes horizontal and vertical installation
*MTM8-63/100 flashover distance is classified into “0” flashover distance and 50mm flashover distance, which should be noted when ordering. There is no “0” flashover for four pole circuit breaker and 690V specification.

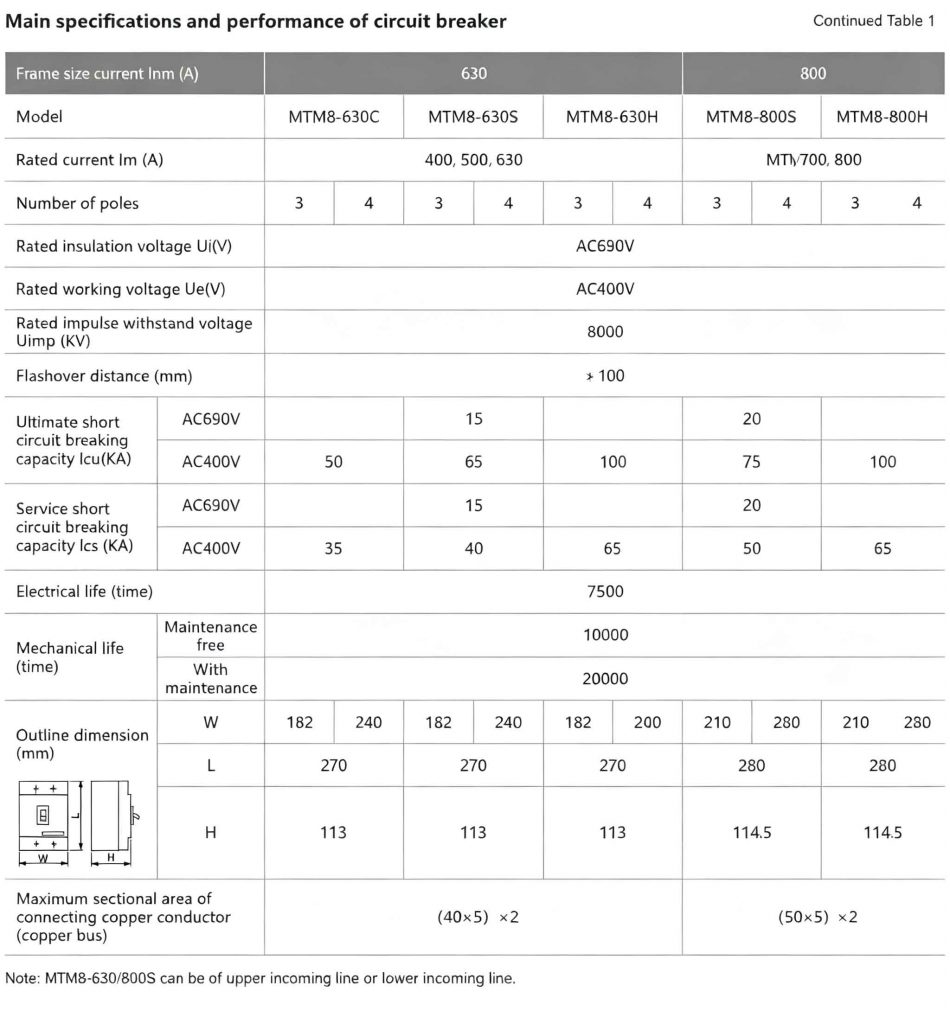

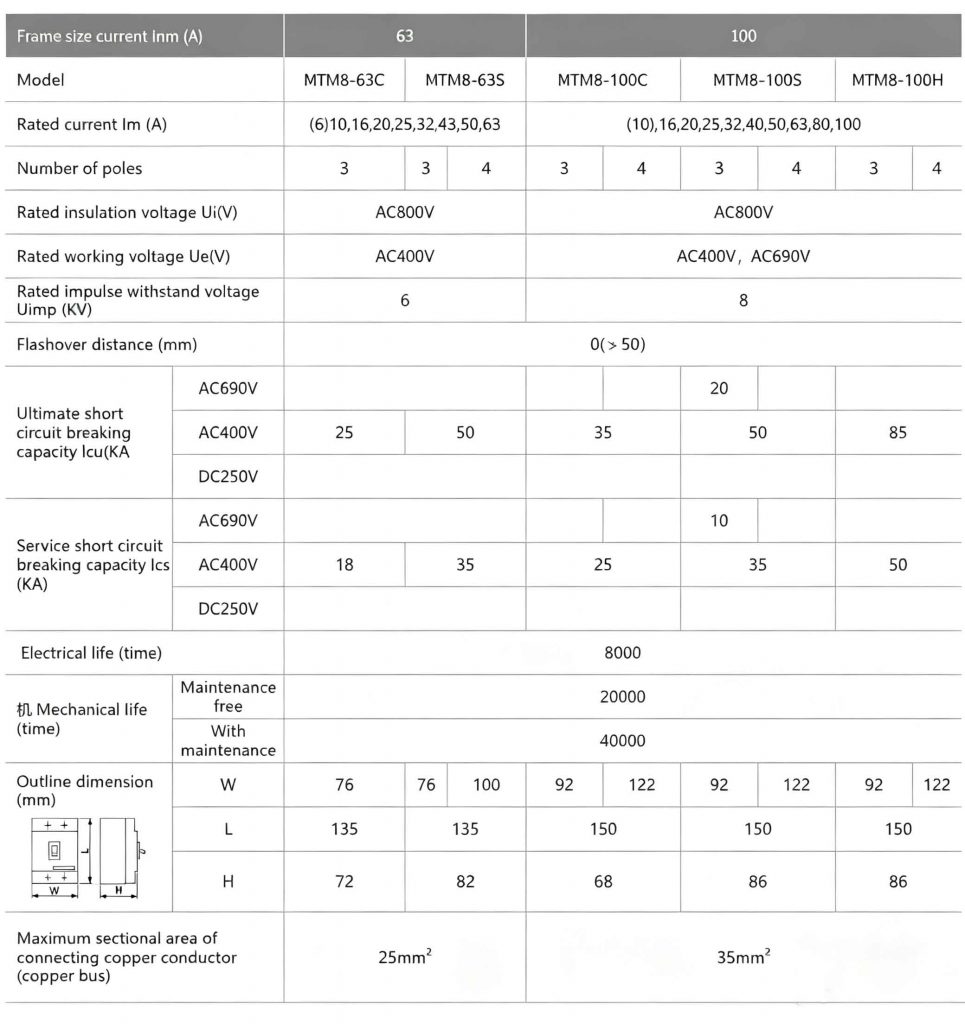

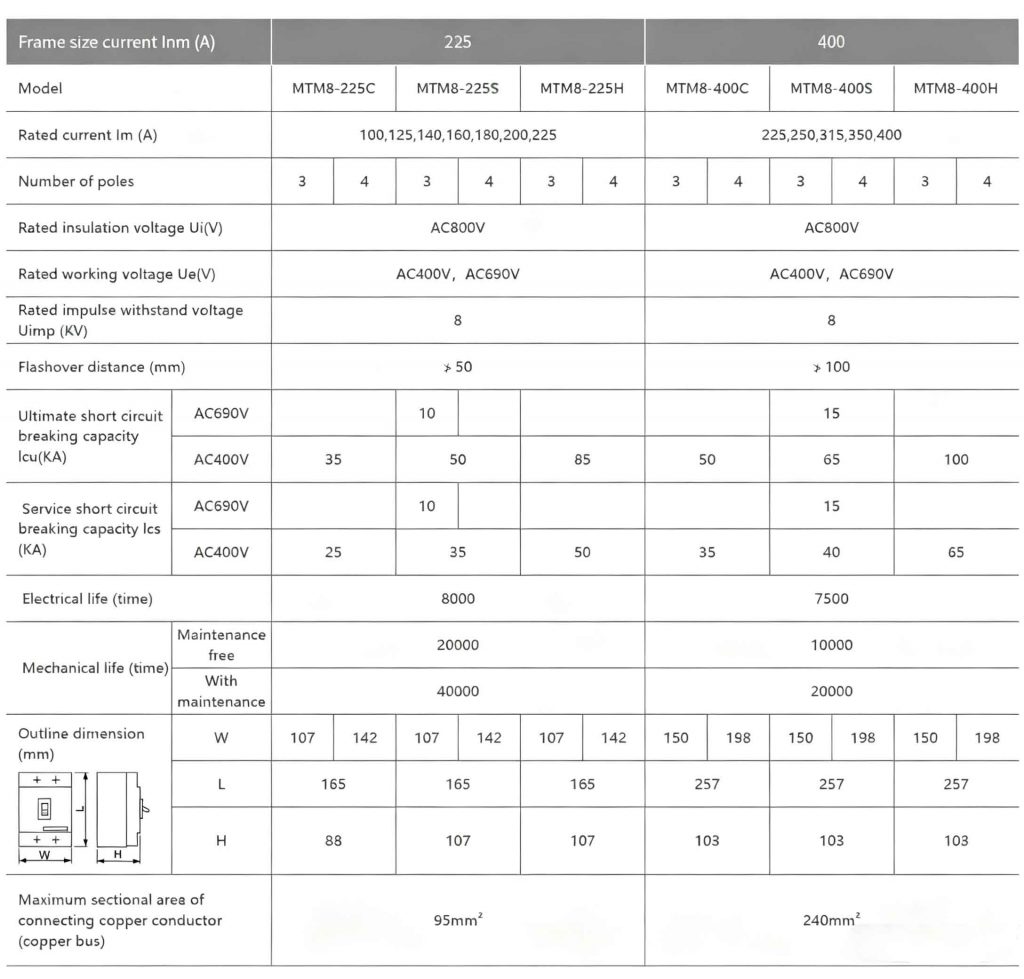

Main specifications and performance of circuit breaker
