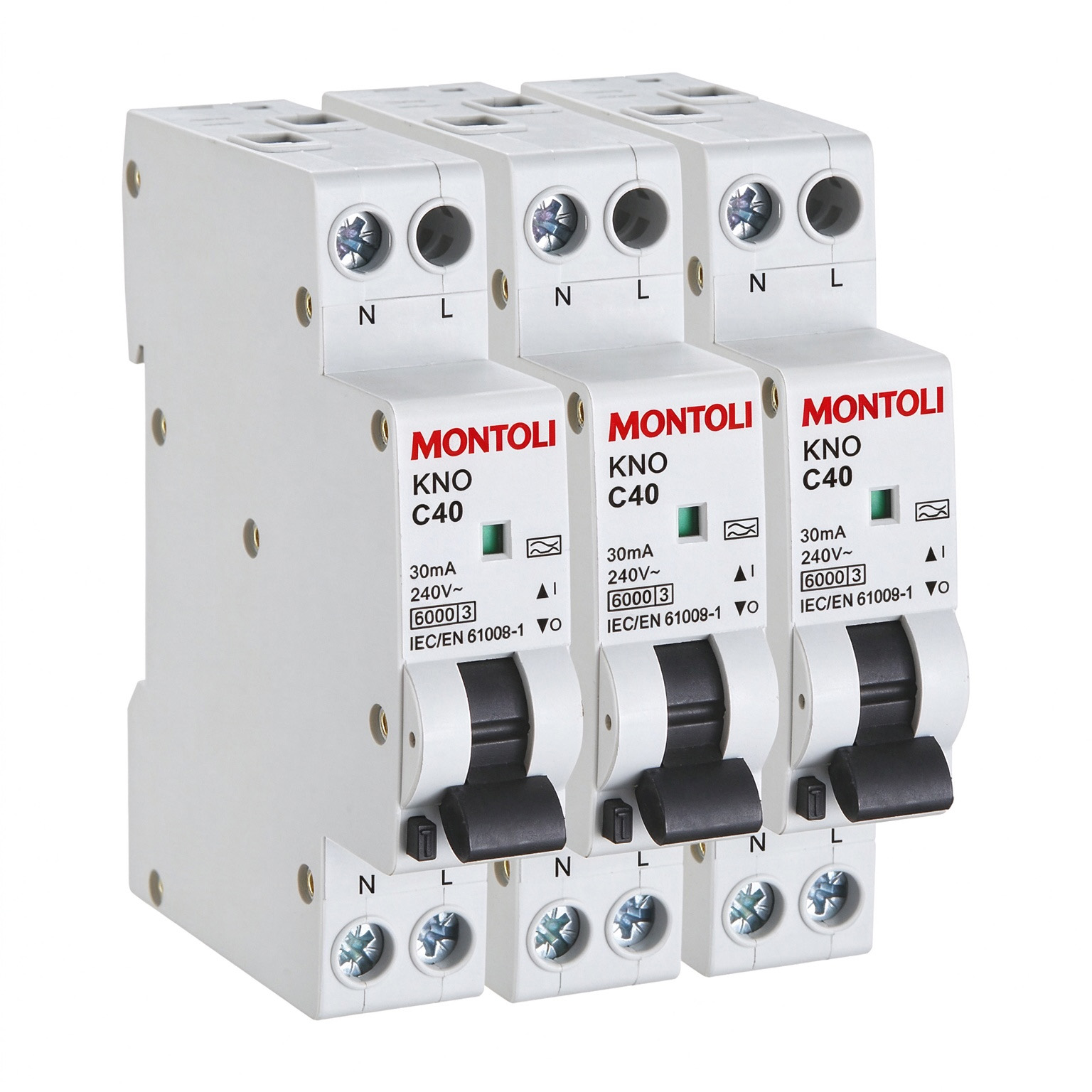

KNO 6kA RCBO
Superior K | Residual Current Breaker with Over-Current
Bi-directional RCBO with switched L&N
A compact RCBO in the same physical size as a conventional single pole MCB.
For complete circuit protection and enhanced safety.
Allows more poles to be fitted into a consumer unit offering a more economy solution.
Capacity complies with most energy authority requirements across domestic and overseas installation fault level requirements.
Enabling better flexibility of installation as there is no restriction to the top or the bottom connection of the supply.
| Rated Current (In) | A | 6, 10, 13, 16, 20, 25, 32, 40 | |
|---|---|---|---|
| Rated Voltage (Ue) | V | 230/240 | |
| Number of Poles | 1P+N | ||
| Rated Breaking Capacity | Ultimate (Icu) | kA | 6 |
| Service (Ics) | kA | 6 | |
| Rated Residual Current (IΔn) | mA | 10, 30, 100, 300 | |
| Residual Tripping Characteristics | AC, A | ||
| Rated Residual Making and Breaking Capacity (IΔm) | A | 3000 | |
| Rated Frequency | Hz | 50/60 | |
| IP Degree | IP20 | ||
| Tripping Characteristics | B, C | ||
| Energy Limiting Class | 3 | ||
| Electrical Endurance | Cycles | 4000 | |
| Mechanical Endurance | Cycles | 10000 | |
| Rated Insulation Voltage (Ui) | V | 500 | |
| Rated Impulse Withstand Voltage (Uimp) | kV | 4 | |
| Cable Termination | mm² | 16 | |
| Torque Screw | N.m | 1.2 | |
| Terminal | Pillar Type |

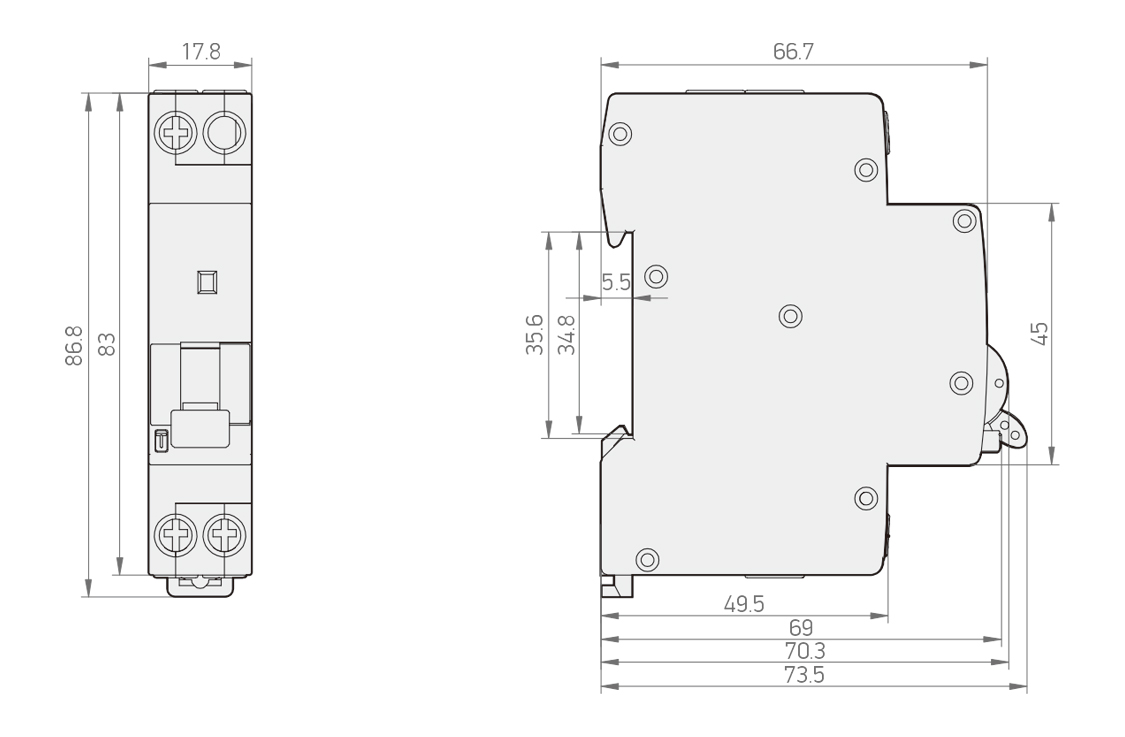

Dimensions(mm)
