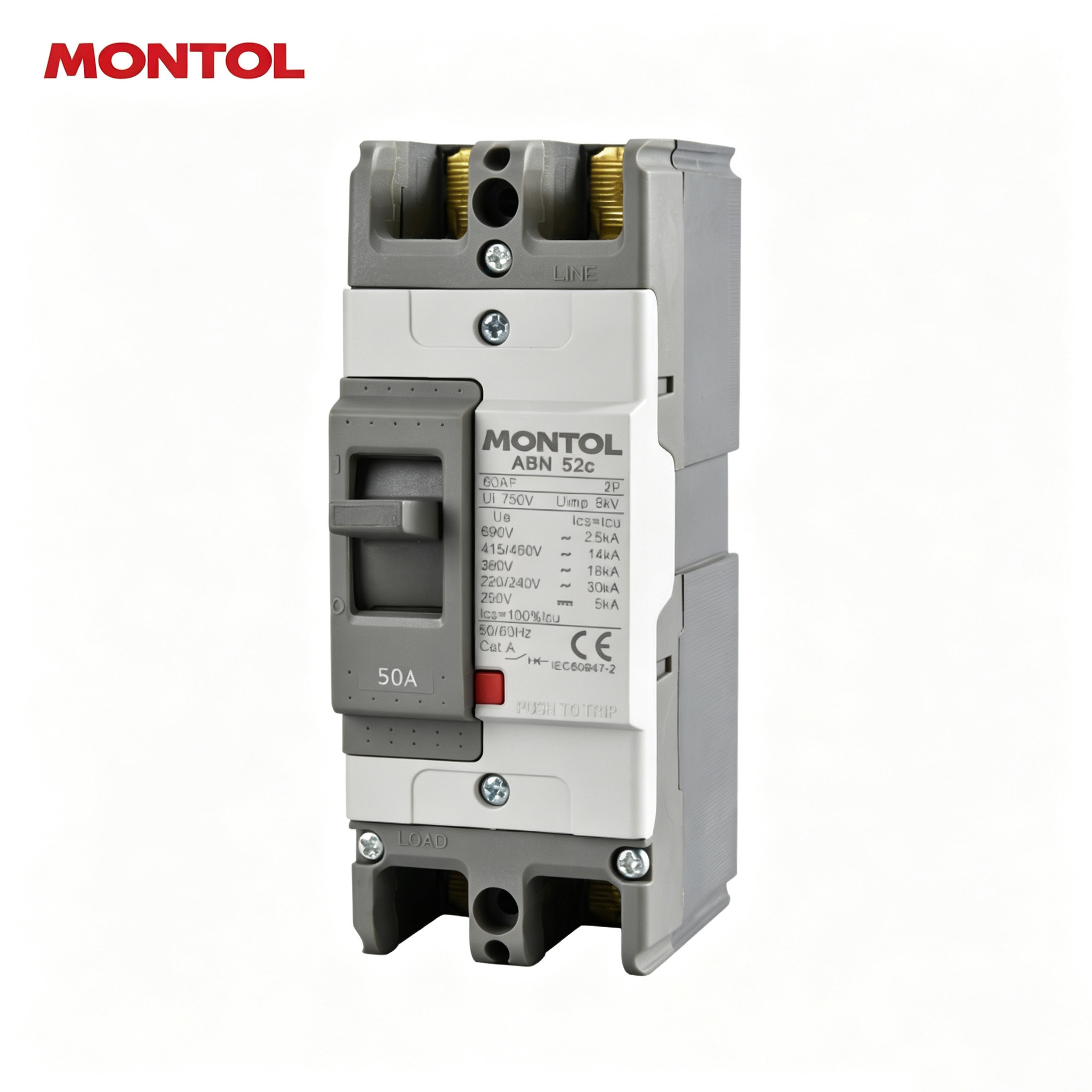

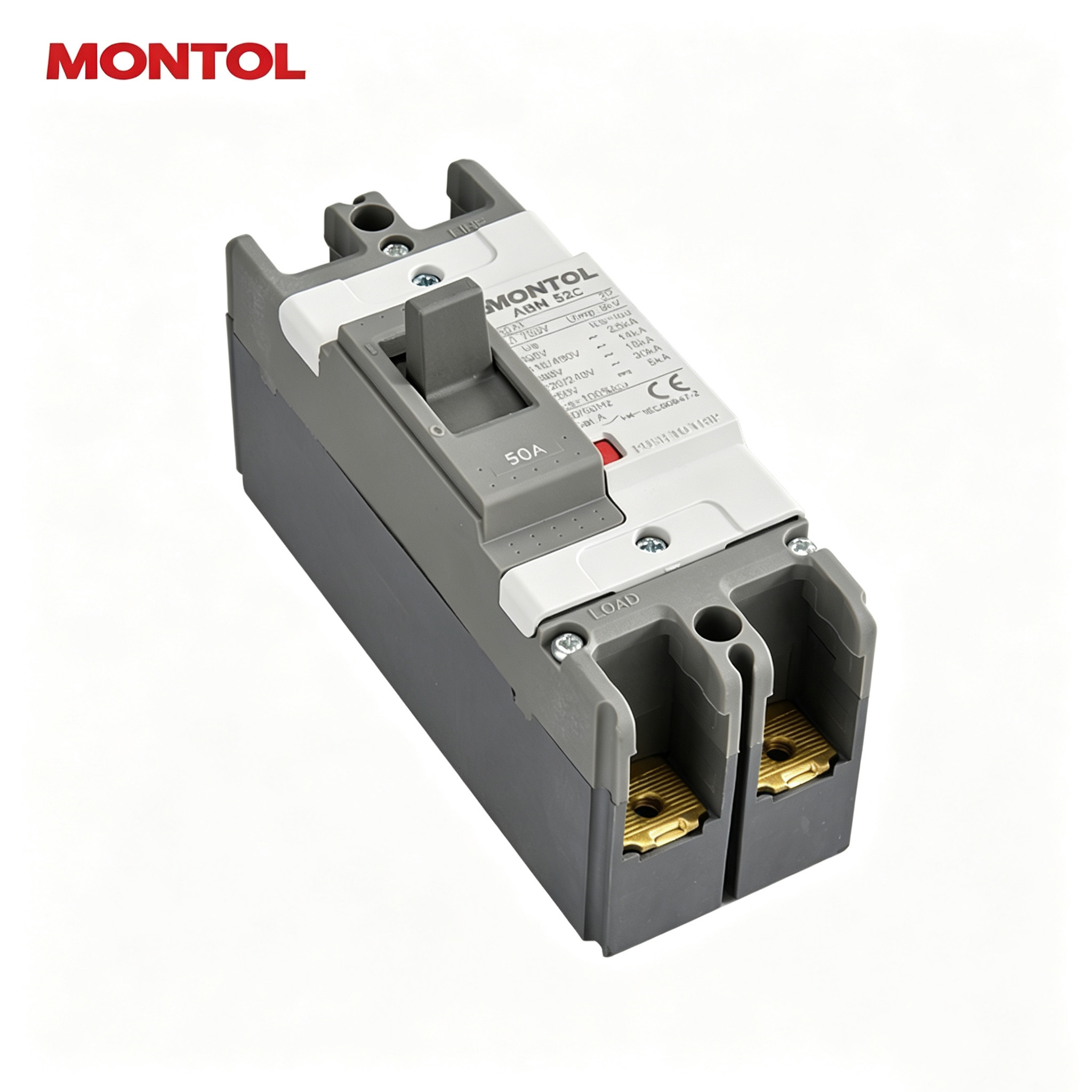

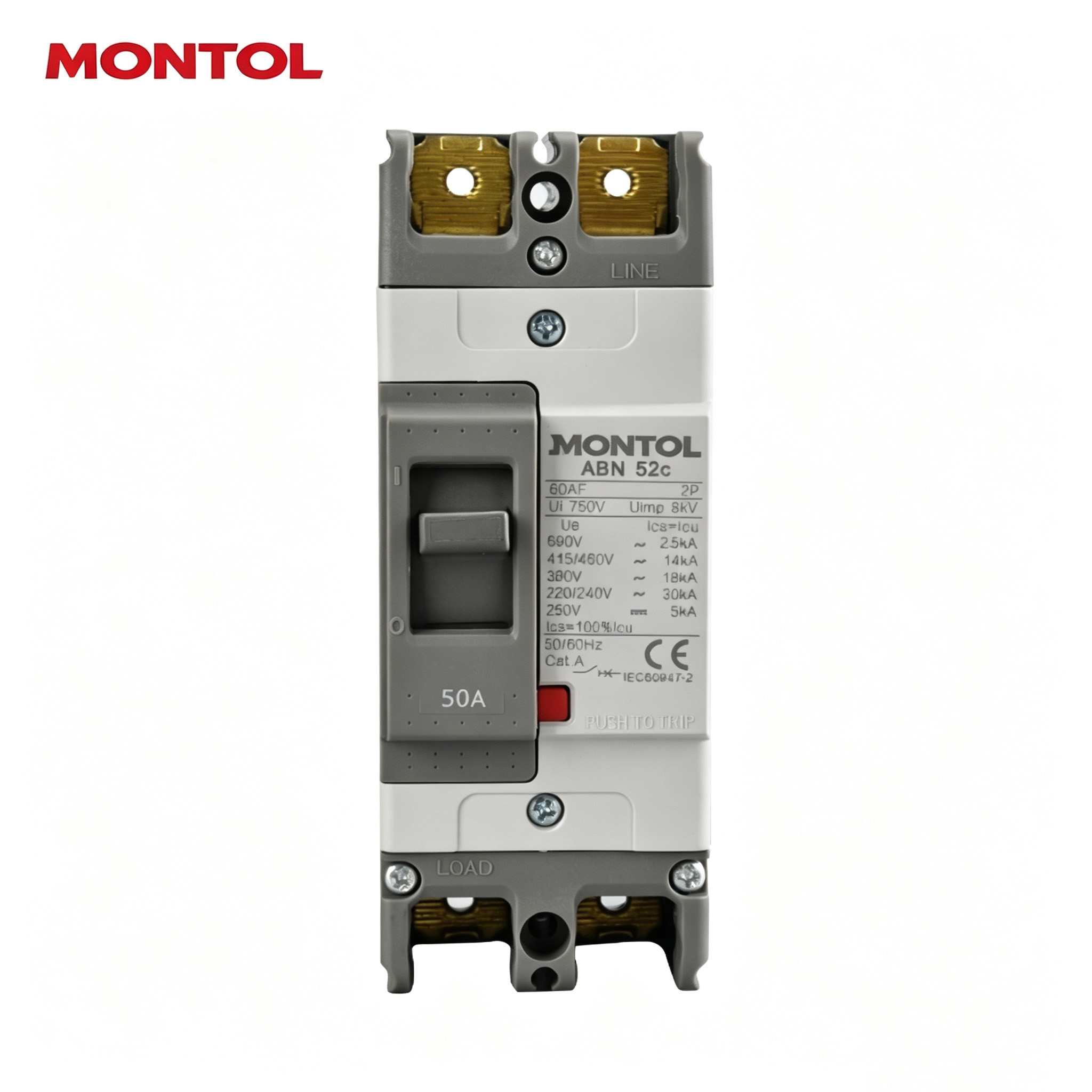

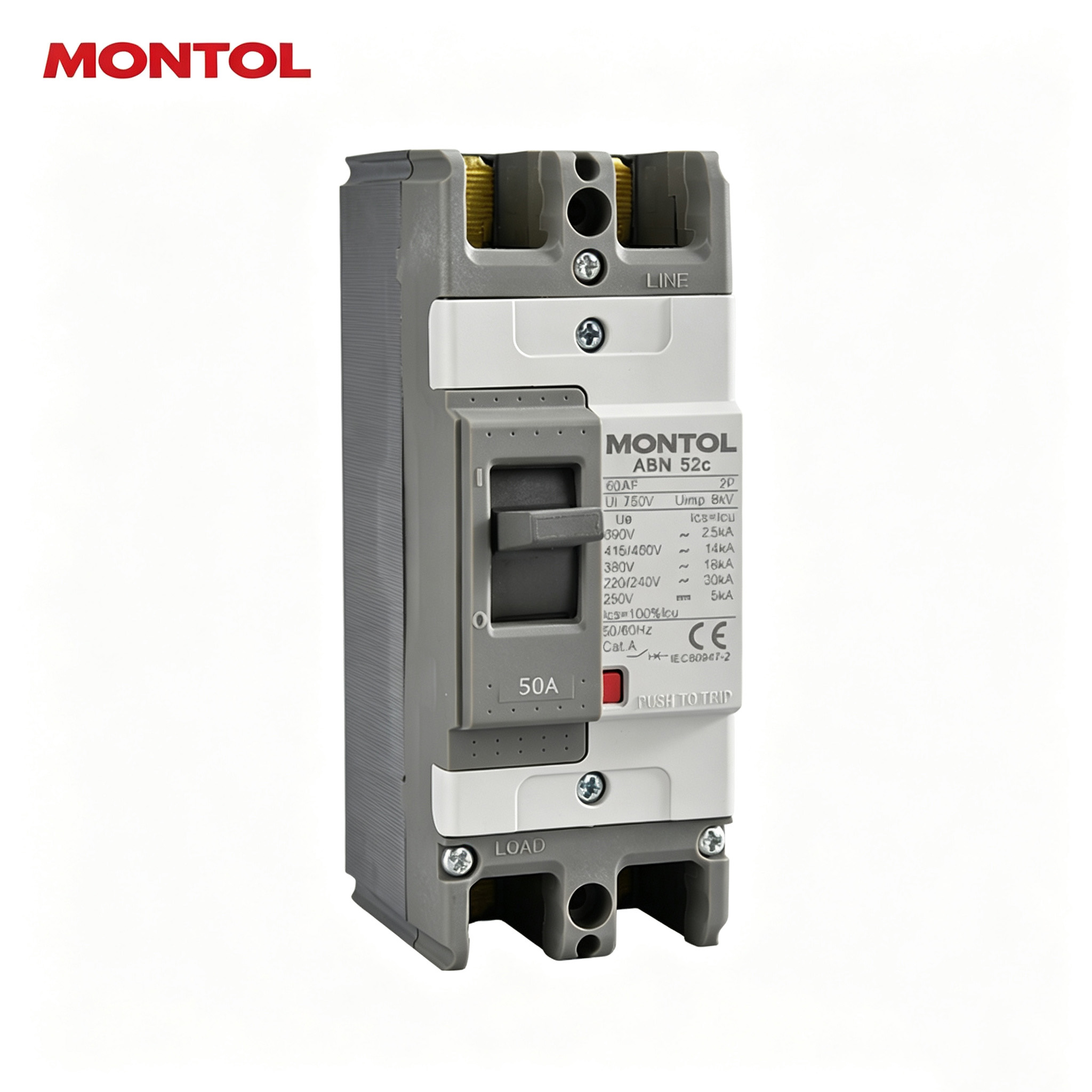

MLN Series Moulded Case Circuit Breaker
Economical MCCB for industrial & commercial power and lighting circuits.
- Model Series
- MLN Series
- Product Type
- Moulded Case Circuit Breaker (MCCB)
- Frequency
- AC 50/60Hz
- Rated Working Voltage
- Up to AC 690V / DC 250V
- Application
- Industrial or commercial power and lighting
- Function
- Line conversion (switching); infrequent starting of motors
← → to switch · Esc to close
![]()
1 / 4
Product Details
Service Range
- compatible and differentiated design
- Compatible with the SKE
- Outlook differentiated design
- Upgrade the coordination
- MLE mass capacity

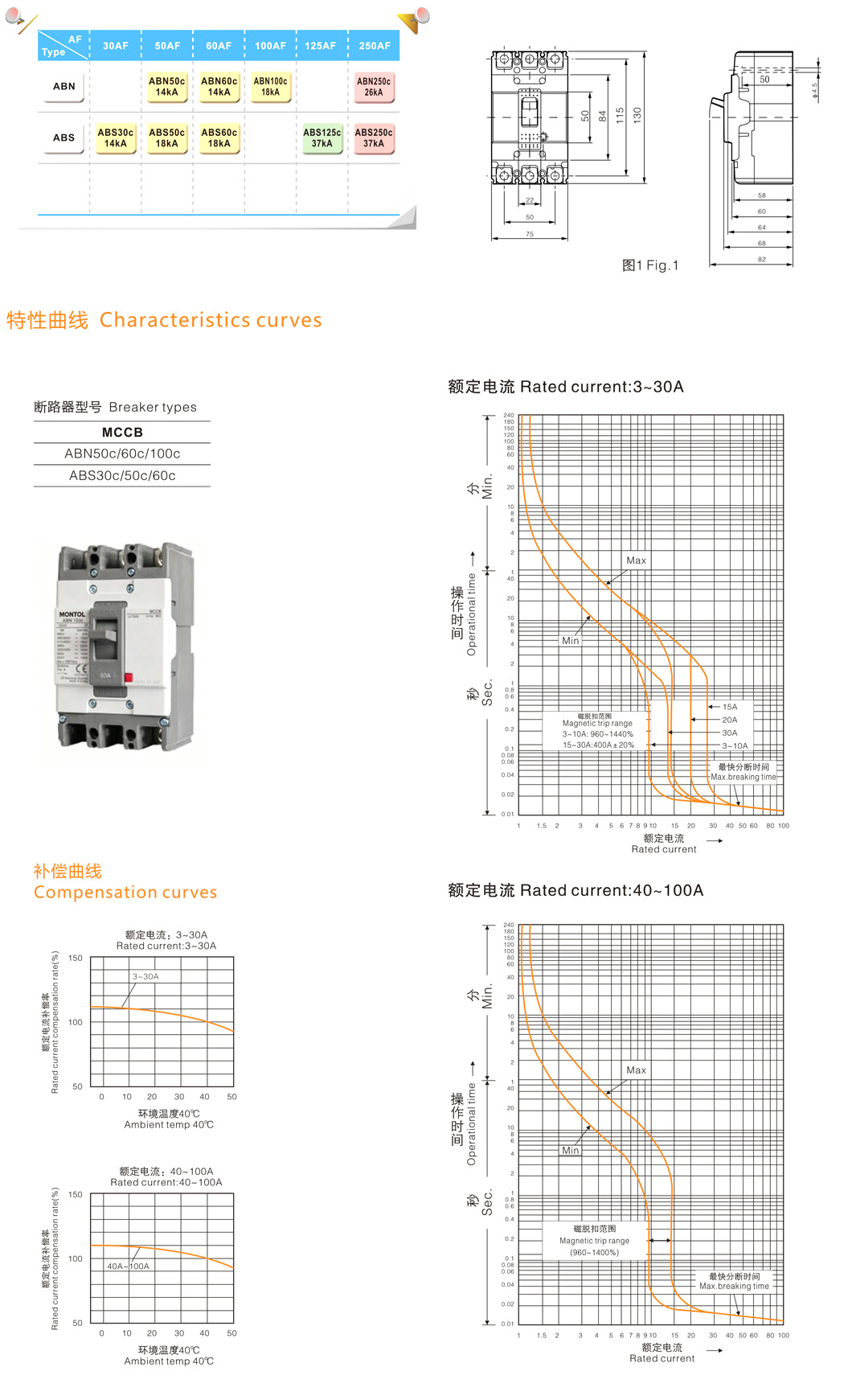

Product Parameters
| Frame （AF） | 50AF | ||
|---|---|---|---|
| Type | N Type | ||
| Pole （P） | 2-pole | ABN52C | |
| 3-pole | ABN53C | ||
| 4-pole | ABN54C | ||
| Rated current in A | 15,20,30,40,50 | ||
| Rated operational voltage, Ue | AC | (V) | 690 |
| DC | (V) | 500 | |
| Rated insulation voltage, Ui | 750 | ||
| Rated impulse withstand voltage Uimp | 8 | ||
| Rated short-circuit breaking capacity(Icu)Ka,iec 60947-2 | |||
| AC | 690V | 2.5 | |
| 480/500V | 7.5 | ||
| 415/460V | 14 | ||
| 380V | 18 | ||
| 220/250V | 30 | ||
| DC | 500V(3P) | 5 | |
| 250V(2P) | 5 | ||
| Ics=% x Icu | 100 | ||
| Dimensions(mm) | W * H*D | 75*130*60mm | |
