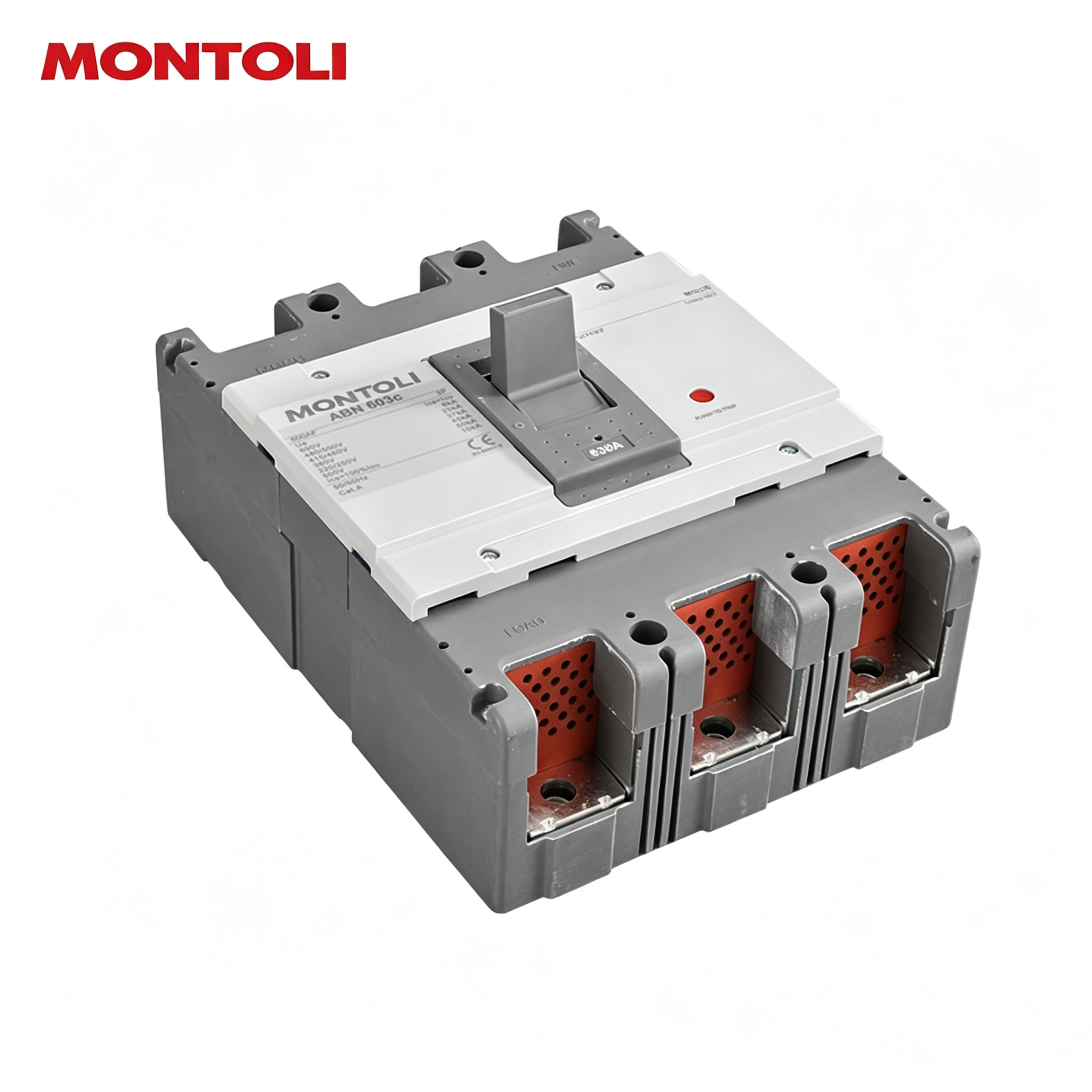

MLN Series Moulded Case Circuit Breaker - View 1
1 / 4

MLN Series Moulded Case Circuit Breaker

Economical MCCB for industrial & commercial power and lighting circuits.

Stable & Reliable Compact Size Long Life Economical
Model Series
MLN Series
Product Type
Moulded Case Circuit Breaker (MCCB)
Frequency
AC 50/60Hz
Rated Working Voltage
Up to AC 690V / DC 250V
Application
Industrial or commercial power and lighting
Function
Line conversion (switching); infrequent starting of motors
Send Message WhatsApp
Product Details - 630AF

Product Details

Service Range

  1. compatible and differentiated design
  2. Compatible with the SKE
  3. Outlook differentiated design
  4. Upgrade the coordination
  5. MLE mass capacity

Product Parameters

Frame （AF） 630AF
Type N Type
Pole （P） 2-pole ABN602C
3-pole ABN603C
4-pole ABN604C
Rated current in A 500,600,630
Rated operational voltage, Ue AC (V) 690
DC (V) 500
Rated insulation voltage, Ui 750
Rated impulse withstand voltage Uimp 8
Rated short-circuit breaking capacity(Icu)Ka,iec 60947-2
AC 690V 8
480/500V 25
415/460V 37
380V 45
220/250V 50
DC 500V(3P) 10
250(2P) 10
Ics=% x Icu 100

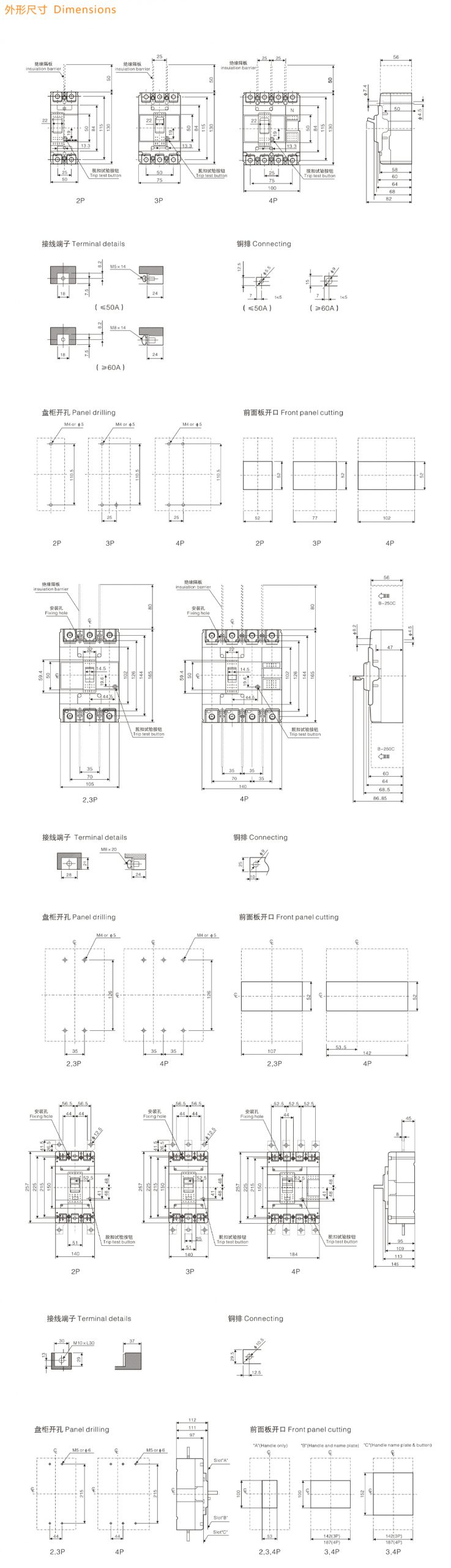

Dimensions(mm) W * H*D 210*280*109mm
