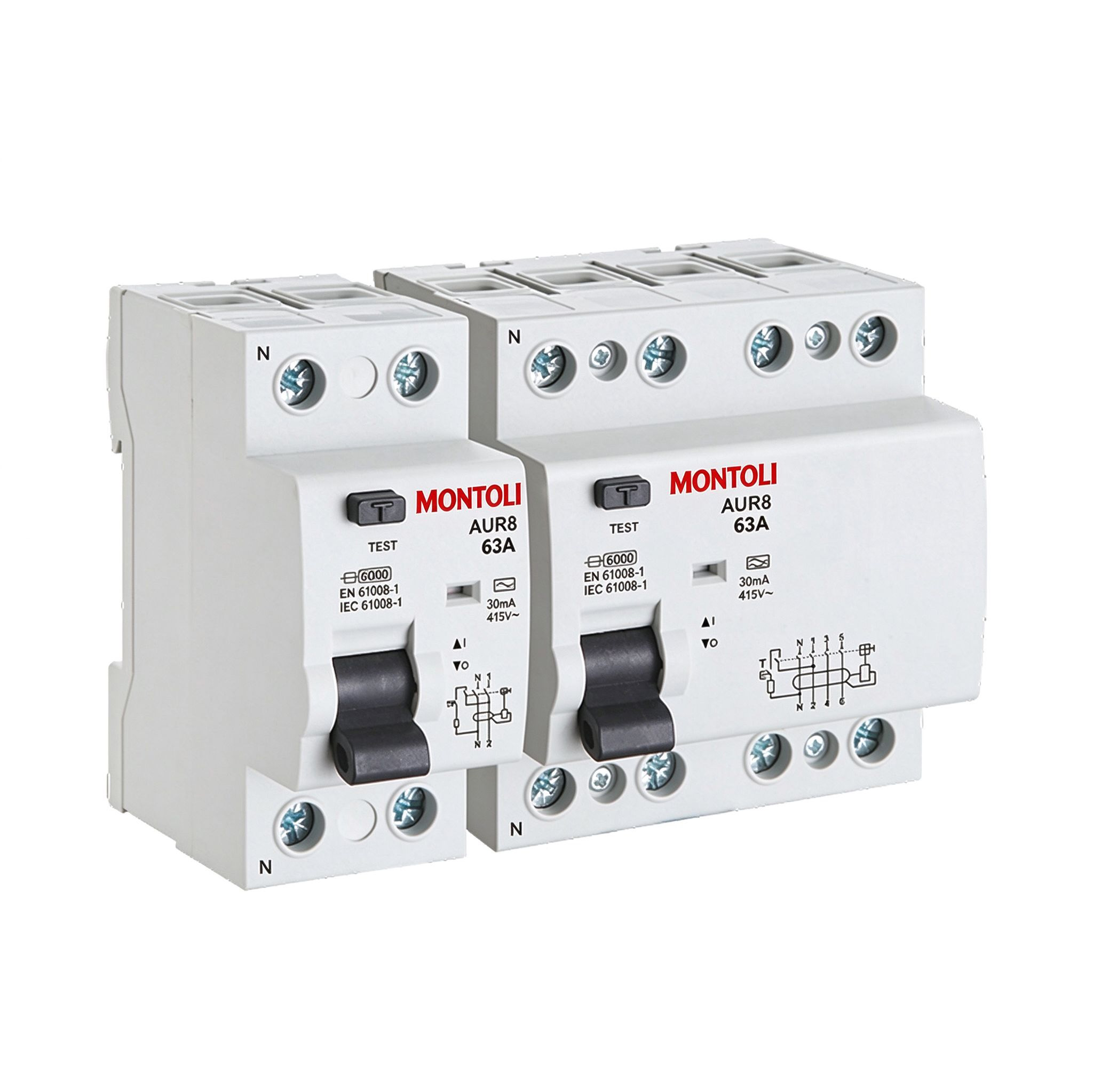

AUR8 10KA RCCB
Superior K | Residual Current Breaker without Over-Current
DC Residual current realized by electronic circuit, combining the advantages of electromagnetic and electronic
Dual Protection of leakage and Isolation
High short circuit tolerance
Fire retardant material adopted for high temperature resistance
High protection for personal safety
Technical Data
| Rated Current (In) | Without time delay | A | 16, 25, 40, 63, 80, 100 |
|---|---|---|---|
| With time delay(Type S) | A | 40, 63, 80, 100 | |
| Rated Voltage (Ue) | V | 240, 415 | |
| Number of Poles | 1P+N, 3P+N | ||
| Rated Breaking Capacity | kA | Inc= IΔc= 10 | |
| Rated Residual Current (IΔn) | mA | 30, 100, 300 | |
| Residual Tripping Characteristics | AC, A | ||
| Rated Residual Making and Breaking Capacity (IΔm) | A | 1000 | |
| Rated Frequency | Hz | 50/60 | |
| Max. Back-up Fuse | In=16~63A 63Ag/gI | ||
| In=80A 80Ag/gI | |||
| In=100A 100Ag/gI | |||
| IP Degree | IP20 | ||
| Energy Limiting Class | - | ||
| Electrical Endurance | Cycles | 2000 | |
| Mechanical Endurance | Cycles | 10000 | |
| Rated Impulse Withstand Voltage (Uimp) | kV | 4 | |
| Cable Termination | mm² | 35 | |
| Torque Screw | N.m | 2.5 | |
| Terminal | Pillar Type |

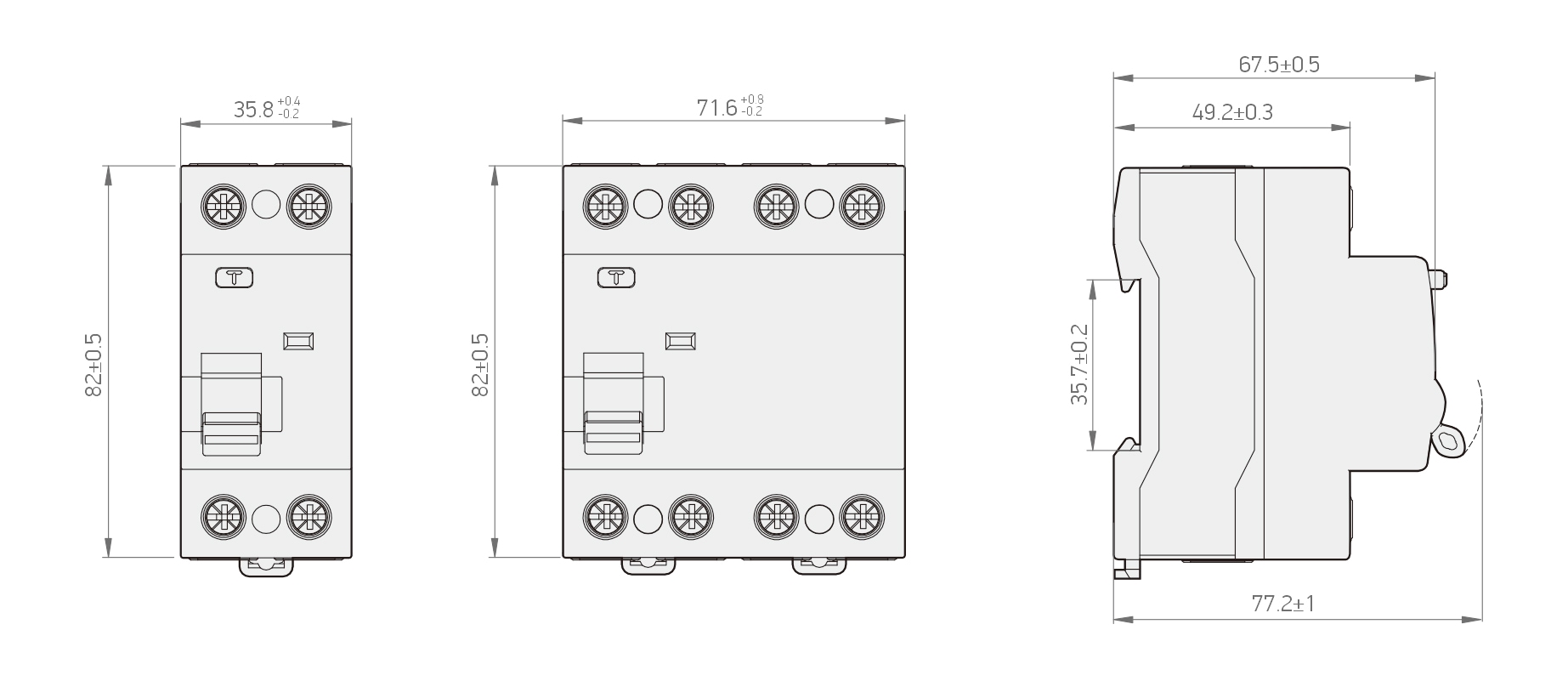

Dimensions(mm)
